| Brand Name : | HD Boiler |
| Model Number : | Steam Distribution Header |
| Certification : | ISO9001,ASME,Grade A,SGS,EN,TUV |
| Price : | $200 |

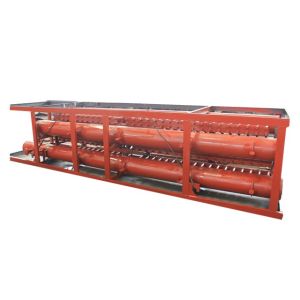

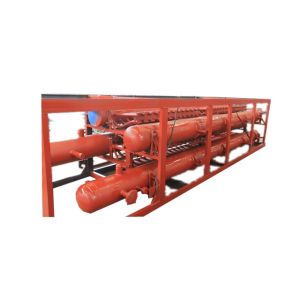

Boiler Manifold Headers
industrial heat exchanger boiler spares header for solar hot water boiler

Product Description
Steam distribution headers are fabricated out of carbon steel or alloy steel seamless tubes. Customized or tailor made items are offered. Headers, after fabrication, are stress relieved to make the Steam distribution headers free from stresses. They are big pipe headers that transfer water from the downcomers to the risers through a combustion zone where the water gets partially heated to steam from the heat of fuel combustion.
Operation
In bringing a boiler on the line with other boilers on a header system,certain precautionss are necessary to avoid water hammer and excessive temperature gradients in the piping. Adequate drainage and warming of the piping will eliminate the risk of water hammer. The judicious use of bypass valves around main header valves will avoid steep temperature gradients. Header drains should be operated. The steam line from the boiler to the header should be brought up to temperature by operating bypass and drain valves. When up to temperature and line pressure, the header valve may be opened wide and the bypass closed.
Technical parameters
Diameter(OD) | ¢76mm~¢914mm |
Length(Max) | 23000mm |
Temperature(℃) | 300~1500 |
Material
1. Carbon steel:20G,SA-106B,SA-106C,etc.
2. Low-alloy thermal resistant steel:15CrMoG,12Cr1MoVG,SA-335P12,SA335-P22,etc.
3. Middle-alloy thermal resistant steel:SA-335P91,etc.
4. Special material(ultra-supercritical):SA-335P122,SA-335P92,etc.

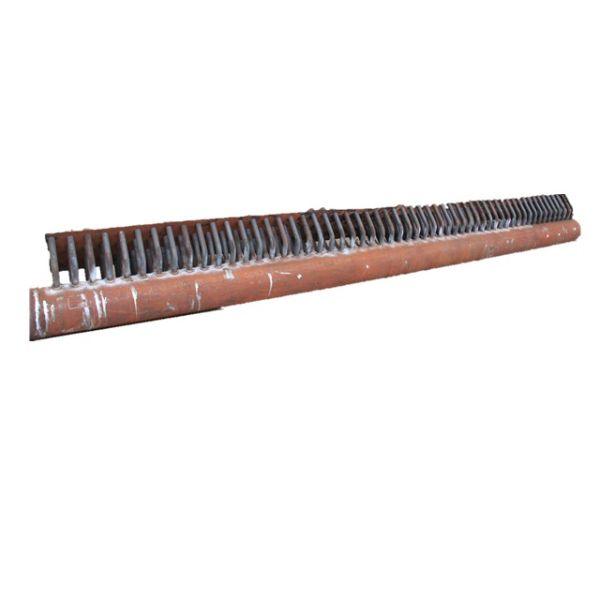

The boiler headers have water wall header,superheater header,economizer header and so on. It acts action of gathering, mixing and redistribution in boiler systems. In structure, they include end cover hinders or necking hinders.






|
