Description

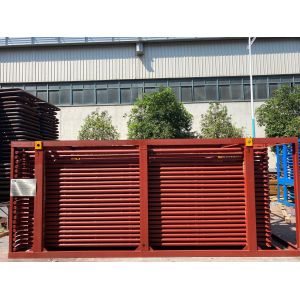

Superheater

Fossil fuel power plants often have a superheater section in the steam generating furnace.The steam passes through drying equipment inside the steam drum on to the superheater, a set of tubes in the furnace. Here the steam picks up more energy from hot flue gases outside the tubing, and its temperature is now superheated above the saturation temperature.

Reheater

Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.

Function

Superheater is to increase the temperature of the steam above its saturation point.

Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.

Specification

Certifications

Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.

"Hua Dong" boilers include Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries. "HD" boilers are honored as "Famous Production in Jiangsu Province", " Jiangsu High-Tech Product" and "Jiangsu Energy-Saving Product". "HD" brand is a "Famous Brand in Jiangsu Province". We are a qualified supplier for the top three boiler manufacturers in China(Harbin Boiler Co., Ltd., Dong Fang Boiler Group Co., Ltd., Shanghai Boiler Works Ltd.,). So far, Hua Dong Boilers have served 10000 customers, which sell well all over China and are exported to USA, Australia, Russia, Kazakhstan, India, Indonesia, South Africa, Brazil, and Southeast Asia.

We strive to manufacture "Safe, Efficient, Energy-Saving and Environment-Friendly" boilers, provide new-type products in excellent quality, serve users sincerely to their satisfaction, and be a top supplier of boilers in China.

Declaration

Zhangjiagang Hua Dong Boiler Co.,Ltd has no subsidiaries.

Packaging & Shipping

Company Business

Our products have been wildly used in power plants and large international companies overseas.
